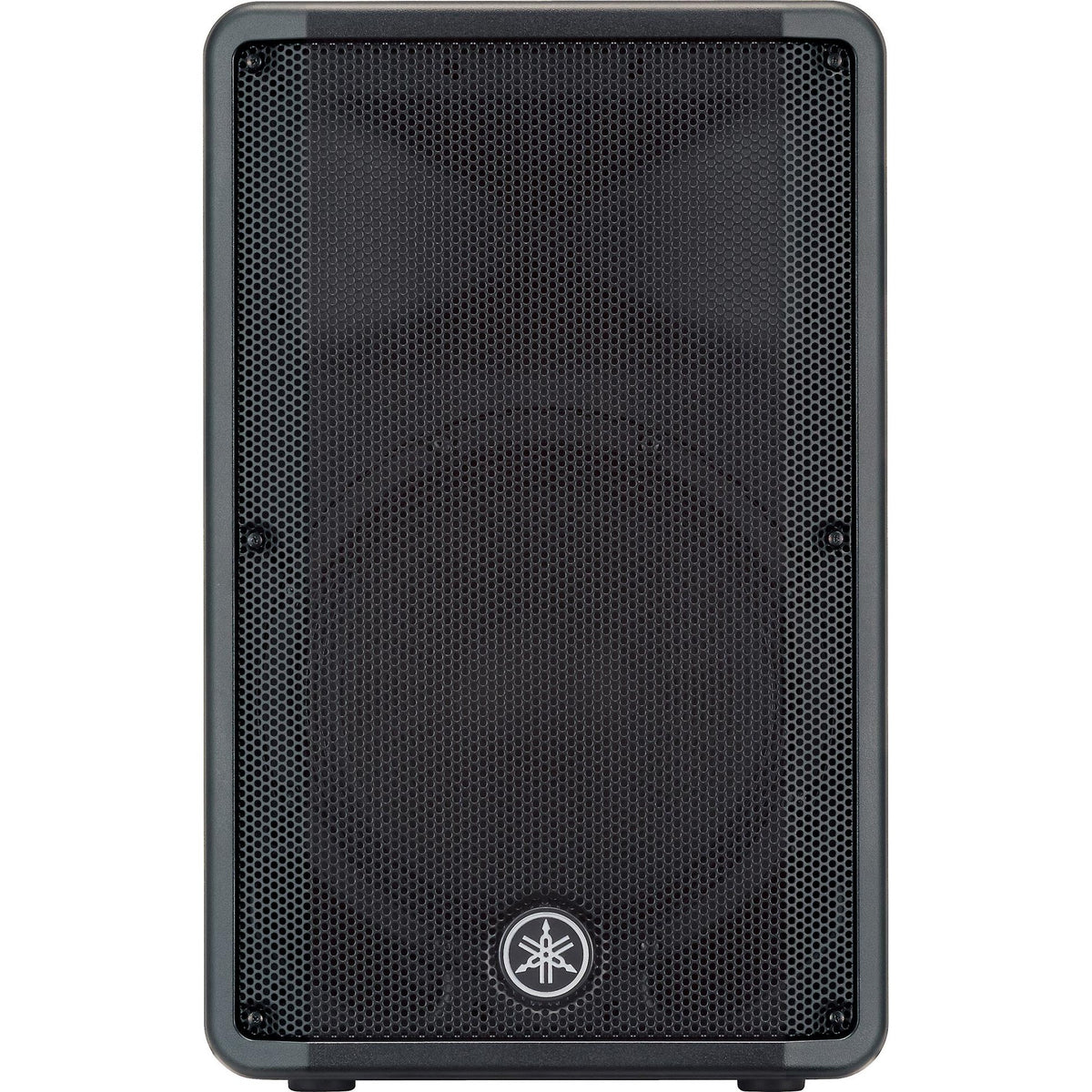

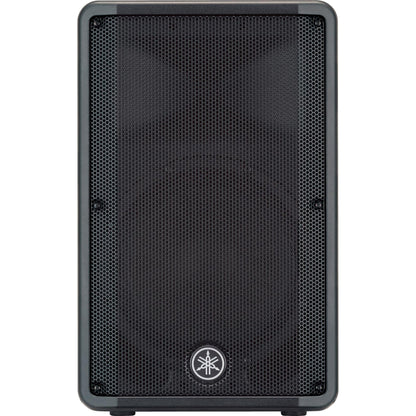

Yamaha DBR12 1000-Watt 12-Inch Powered PA Speaker
Yamaha DBR12 1000-Watt 12-Inch Powered PA Speaker
Couldn't load pickup availability
Able to withstand a whopping 131dB SPL, the Yamaha DBR12 12" active speaker gives you an accurate, controlled performance. Using the latest DSP, Yamaha applied their proprietary FIR-X tuning to optimize the sound and protection algorithms of the DBR12, providing you with plenty of muscle, despite this active speaker's rather diminutive size. Incredibly versatile, you can use the DBR12 as a great-sounding main speaker or as a high-performance floor monitor with a quick flick of the Yamaha DBR12 12" active speaker's D-Contour switch. A switchable highpass filter also makes it easy for you to add a subwoofer to your rig. Your band deserves to sound the best, so get the best!
-
FIR-X tuning delivers excellent sound quality with high resolution and a smooth frequency response
-
D-Contour optimizes the DBR12 for main speaker or floor monitor use
-
Onboard mixer lets you select either a direct output or a mixed output
-
Comprehensive inputs for mixer, musical instrument, or media players
-
Amplifier and power supply design provides powerful output from a compact speaker
-
DSP-controlled protection functionality promotes optimum reliability
-
Power Configuration: Bi-amped
-
LF Driver Size: 12" woofer
-
HF Driver Size: 1.4"
-
LF Driver Power Amp: 800W
-
HF Driver Power Amp: 200W
-
Total Power: 1000W
-

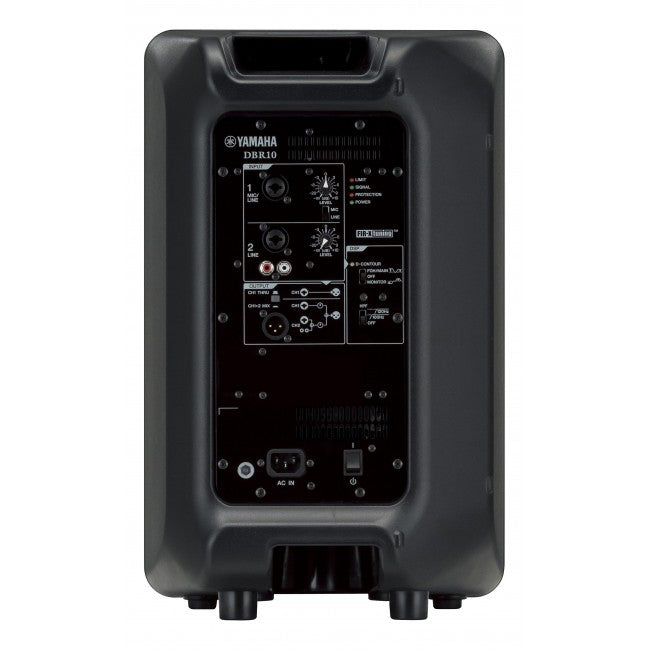

Inputs: 2 x XLR-1/4" combo, 1 x Dual RCA Stereo
-
Outputs: 1 x XLR
-
Frequency Range: 52Hz-20kHz (-10dB)
-
Crossover Frequency: 2.1kHz
-
Maximum Peak SPL: 131dB
-
Horizontal Coverage Angle: 90 Degrees
-
Vertical Coverage Angle: 60 Degrees
-
Enclosure Material: Plastic
-
Mounting Options: Pole Mount with 1.37" socket, Floor Wedge, 3 x M8 Fly Points
-
Power Source: Standard IEC AC cable
-
Height: 23.7"
-
Width: 14.8"
-
Depth: 13.7"
-
Weight: 34.8 lbs.
